Next step in U.S. Wind Feeder solution

01 April 2021

Barge Master has increased the capacity of its motion compensated platform to make it ready for feedering the next generation WTG’s.

With the increased capacity of 800 ton load we keep the new tower sections with a high weight and Centre of Gravity (CoG) completely stable.

The Barge Master T700 compensates at the base of the tower sections for roll and pitch movements where a heave compensation solution in the hook assist in elimination of the heave motions.

The motion compensated platform can be mobilized on any U.S. flagged vessel or barge, making it a Jones Act compliant solution.

The T700 can operate in sea states of over Hs 2.0 meters and will provide an increased workability of 40-60% more uptime during the installation of the turbines.

The motion compensated platform makes your operation safer and very cost efficient.



More information about the BM-T700

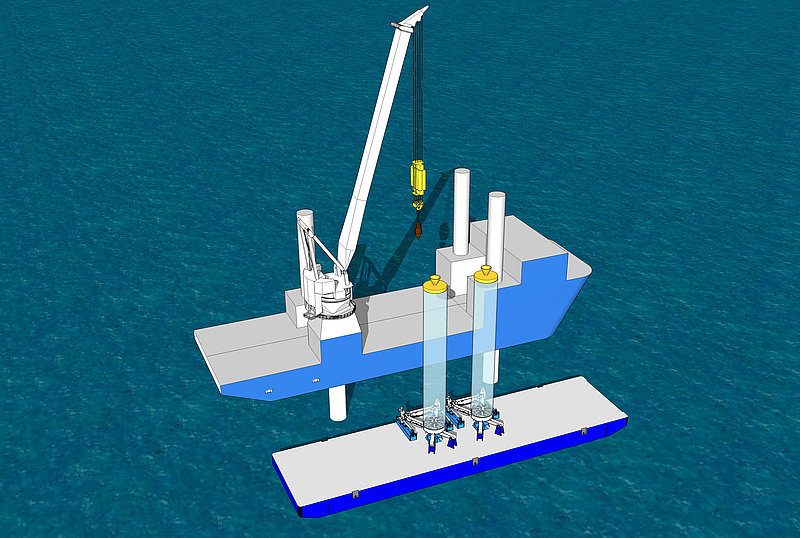

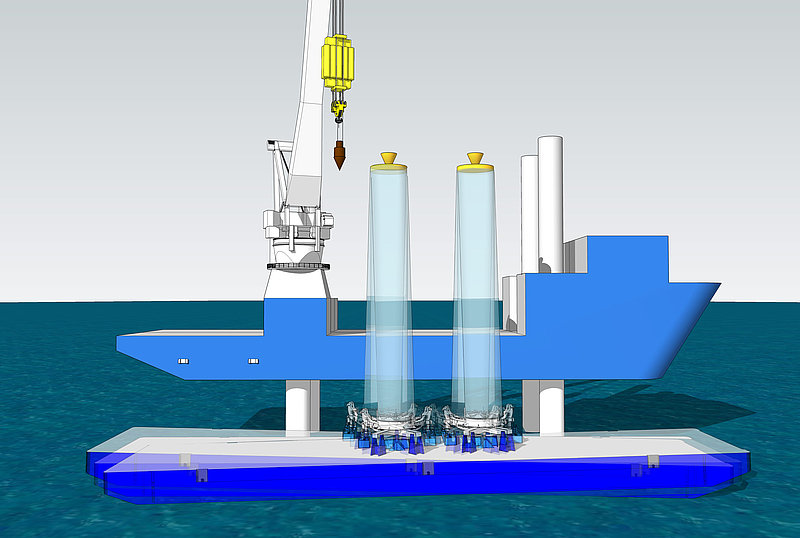

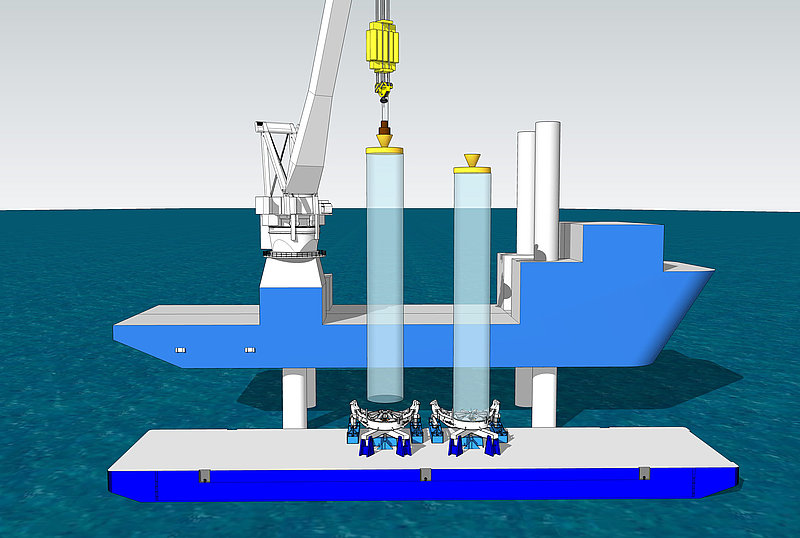

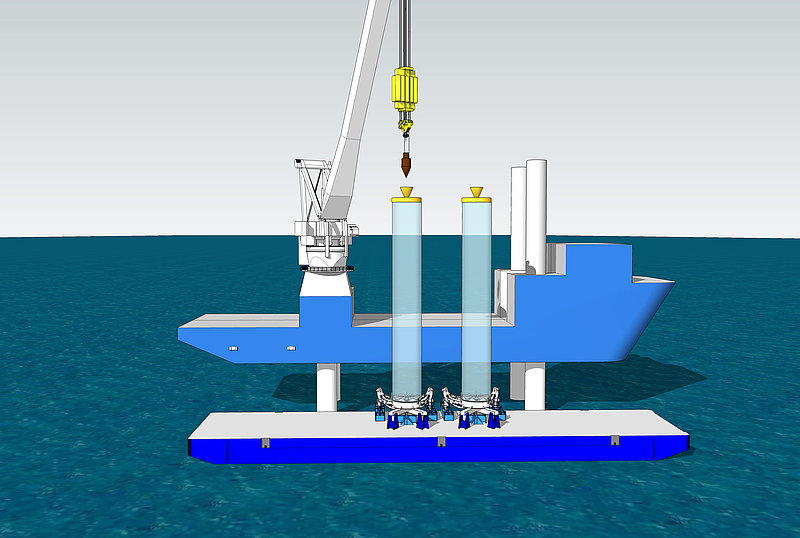

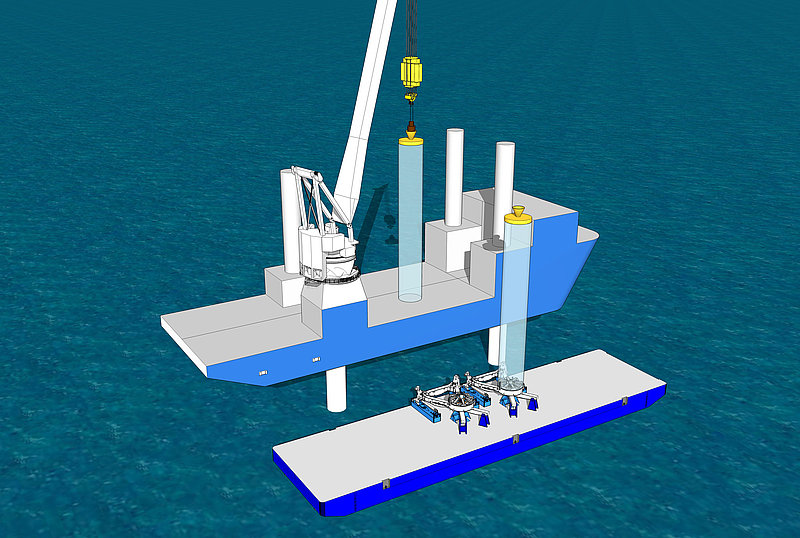

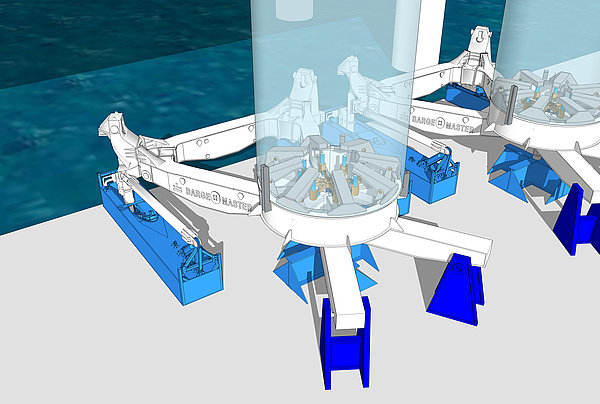

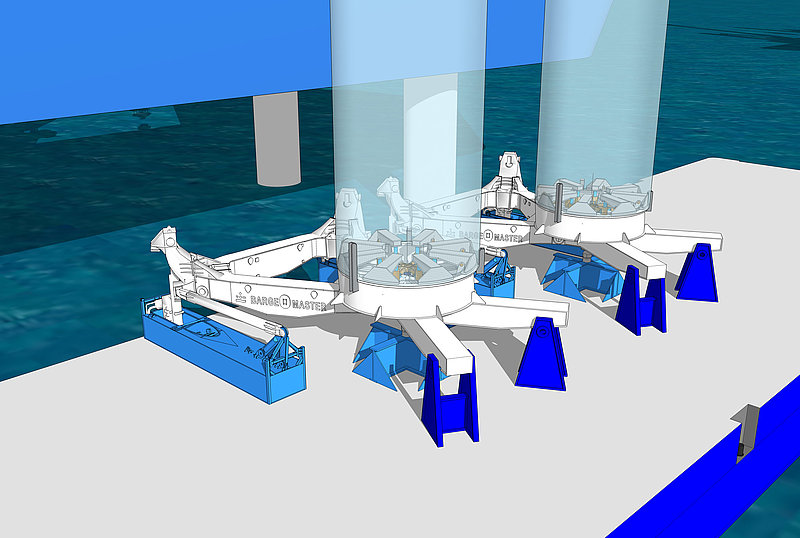

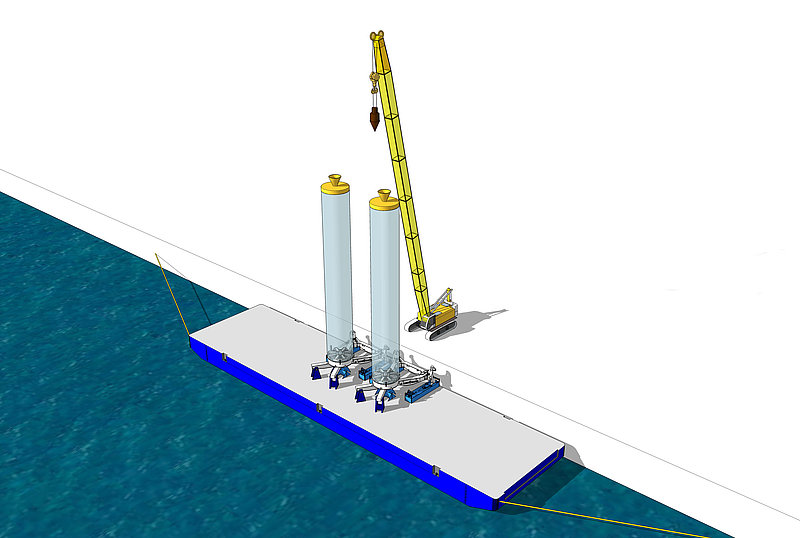

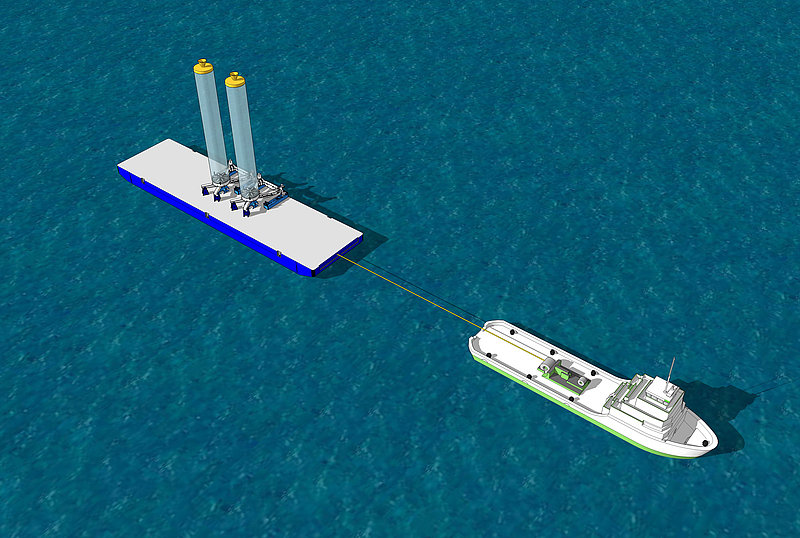

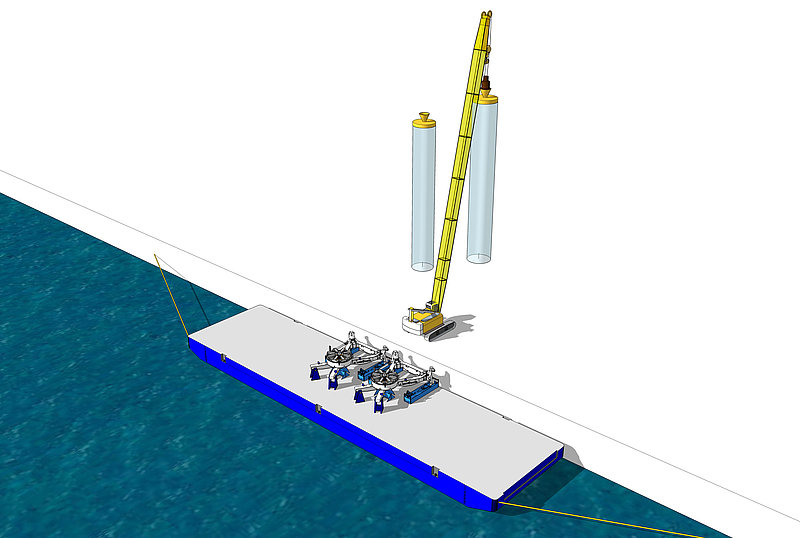

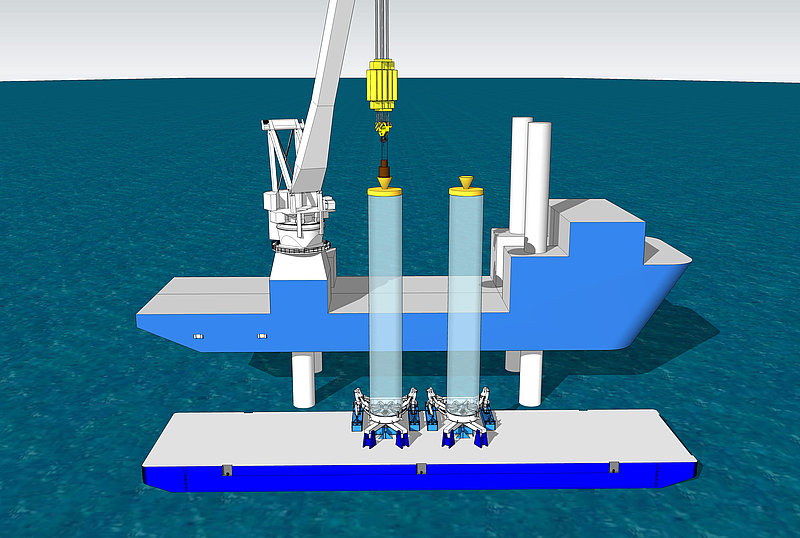

Components are picked up by shore-side crane Components are loaded on barge and quick release system is engaged Barge is towed to offshore location Barge is moored alongside Installation Vessel Barge Master seafastening is disengaged Operator remotely starts compensation of BM-T700 platform to keep tip of tower still Crane driver engages heave compensation tool in hook Crane connects to tower using lifting tool Operator switches to compensation of roll and pitch instead of tip of tower Crane operator remotely disengages quick release tower seafastening Crane operator lifts of tower Crane operator moves tower to Installation Vessel Back to overview
